- ø 2,5 to 8 mm
- LENGTHS : 4 to 50 mm
- MATERIALS : Steel - Brass - Copper. Aluminium - Stainless Steel 18/10 - F17.
- FINISHIONS : Polished White Zinc Plated Yellow Zinc Plated
- POSE : Add at least 0,4 time the diameter of the body to the thickness you want to assembly

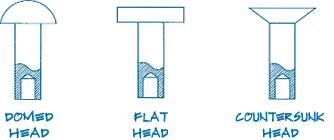

- HEAD SHAPES





RIVET TYPE P DIMENSIONS
Type
Body
Diameter
Head
Diameter
Head
thickness
Hole
Diameter
Thickness
hole maxi
13P
2,5
5,0
0,7
1,6
4,0
11P
3,0
5,5
0,8
2,0
4,5
9P
4,0
7,8
1,0
2,7
5,5
6P
5,0
8,5
1,5
3,5
6,0
4P
6,0
10,0
1,7
4,2
6,5
2P
8,0
13,0
3,0
6,0
8,0
